7bbl Brewery Equipment SUS304

Basic Info

Model No.: DHB-7BBL-3

Processing Material: Natural Ingredients

Process: Ferment

Additional Info

Packaging: wooden case or fix in container

Productivity: 100 set

Brand: deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 10 set per month

Certificate: CE

HS Code: 8343400000

Port: Dongguan,Shenzhen,Hongkong

Product Description

7 BBL 3 Vessel Automatic Beer Making Brewery Equipment

The 7bbl automatic beer brewing machine is made of stainless steel 304, with mashing and lautering pumps, heat exchanger, modular mounted on frame, all pipeworks are finished.

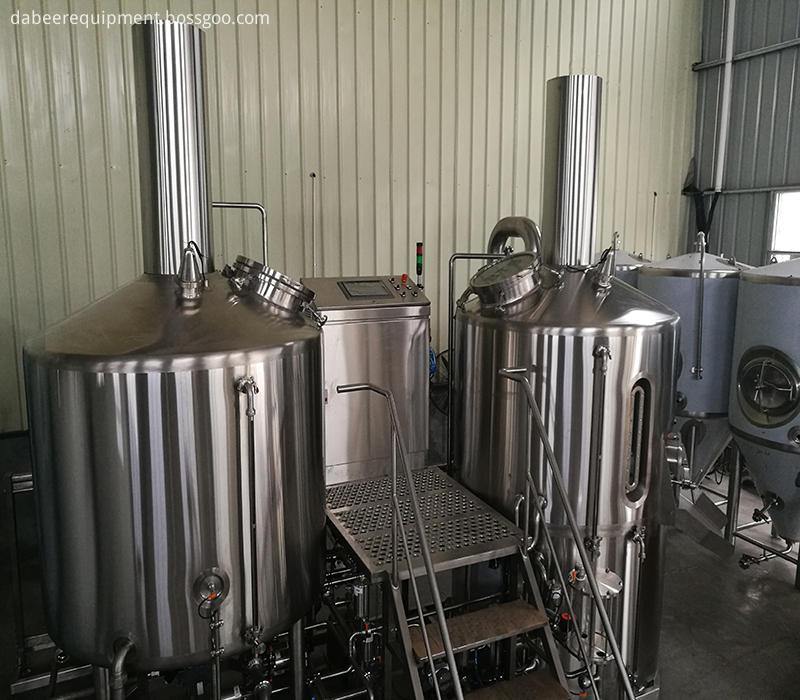

10HL Automatic operation Brewhouse System

The steam heating brewhouse is 3 vessel Germen type.

• Mash tun- Wort kettle
• Lauter Tun
• Whirlpool

This brewhosue includes, but not limited to

1. 4 vessels fully insulated, all parts piped.

2. SUS304 stainless steel or above standard material are completely used.

3. Convenient cabinet control of all brewing process, automatic operation of valves on touch panel.

4. With vapour heat collection system

The details of this brewhouse is featured as following photos and descriptions:

Siemens Control system and touch panel

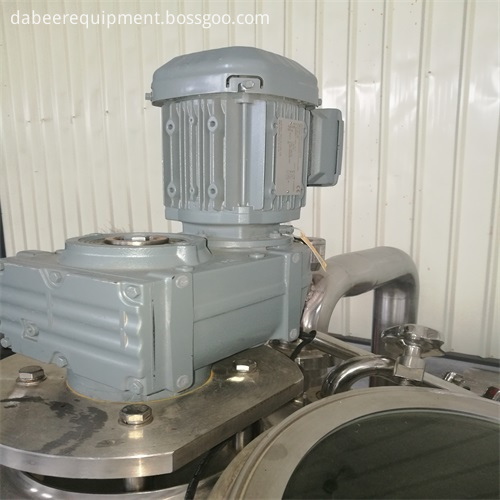

Agitator and SEW motor

Internal Wort Cooker

Glasssight manhole

Underback with level sensors

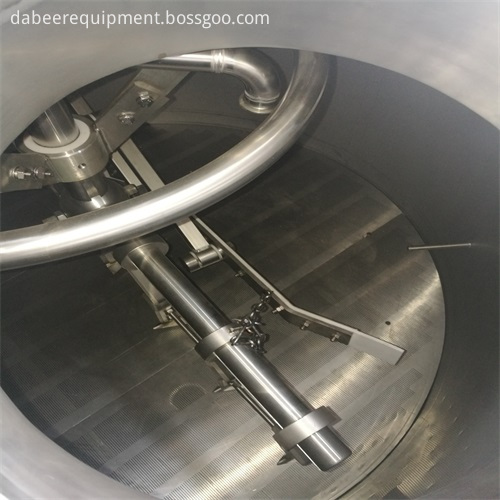

Lauter tun manhole security sensor

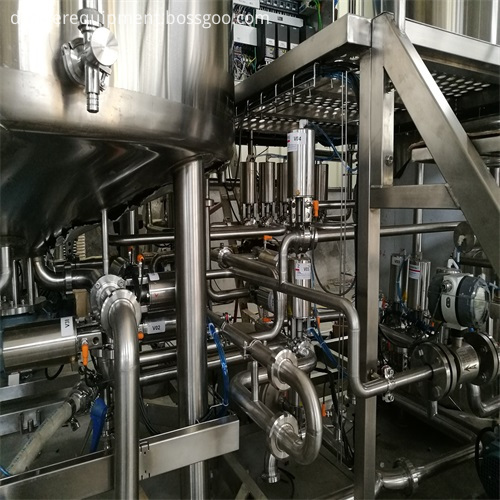

Pneumatic valves and pipwworks

Danfoss brew water mixer

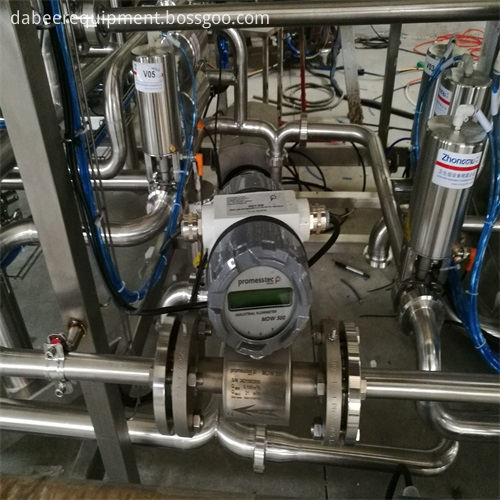

Flow meter

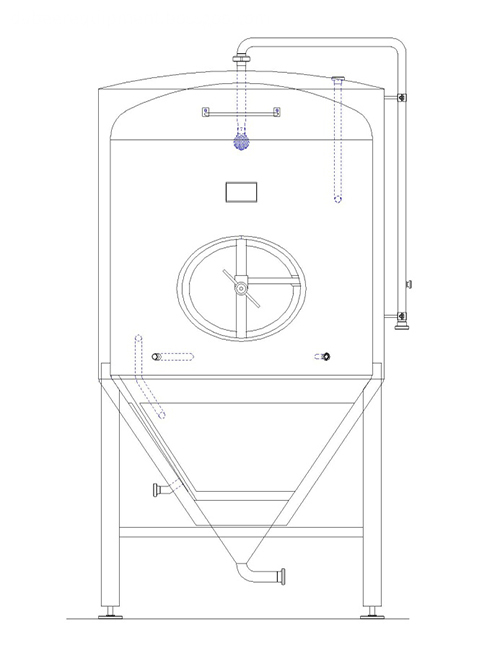

10hl fermenters and brite tanks

1. Conical fermentation tank and horizontal lagering tank are available.

2. SUS304, internal wall 3mm, inner welds polished; outer shell 2mm, surface polished.

3. With cooling jacket on cylinder and conical bottom. Equipped with chiller and glycol tank.

4. Side manhole, top CIP spray heads, security valve and pressure measurement.

5. Conical fermenter is 60 degree bottom, drain at the center of bottom, equipped with sample tap, temperature sensor, beer faucet.

6. Cold water inlet and outlet.

7. PU insulation 50mm.



equipped with fittings:

• 1 connection piece DN 25/25
• for RLV fitting with CIP connection piece DN 25
• 2 crane eyes
• 1 side manhole
• 2 connections for cooling, welding nipple R ½[
• 1 thermometer
• 1 connection piece R ½[
• 1 outlet DN 32
• 3 feet made of stainless steel with pressure plates
• 1 sampling tap
• Surface: inner welds polished inside,
• Outer welds polished and stained

Hot water tank 20HL stainless steel 304

Brew Water Plant

• with a pre-treatment water tank, and a brew water tank, water plant
• the active carbon bottle can be replaced by food grade stainless steel.

Cooling plant – Glycol for wort and vessel cooling

• in compact design:
• for internal installation
• made as one-circle system
• refrigerant: R134a
• glycol wage: 20%

Keg filling machine

KEG Filling and cleaning machine Multimat MT2

Additional bottle cleaning station (6 position)

Addtional bottle filler AF80

Steam Generator

Electric heating steam generator

380V, 100Kw, two groups

with security valves and anti-dry heating protection

Malt Mill, Malt Conveyor, Malt Transport Pump, Wet Malt Mixer, Heat Exchanger, Hops Gun, Yeast Cultural Tank, Air compressor,  Chiller and all other accompanying equipment are available from our company. Please write down your equipment list, we make a configuration and complete turnkey solution for you.
