Automatic 5000L brewhouse scale brewery equipment

Basic Info

Model No.: DHB-5000-5

Processing Material: Natural Ingredients

Process: Ferment

Additional Info

Packaging: wooden case or fix in container

Productivity: 2 set per month

Brand: Deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 5 set per month

HS Code: 8438400000

Port: Dongguan,Shenzhen,Hongkong

Product Description

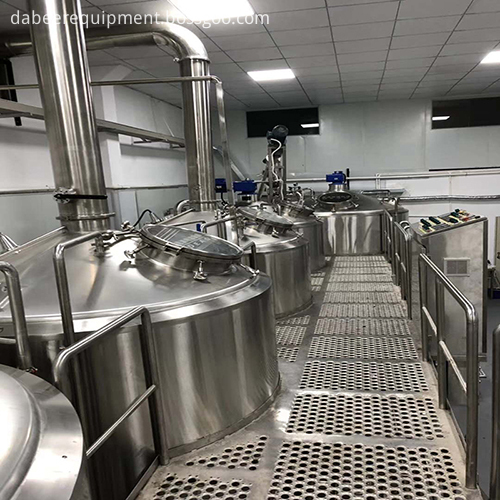

50HL 5 vessel scale brewery equipment

The specification of this brewhosue includes, but not limited to

1. Designed as five vessels: Mash tun, Lauter tun, Brew Boiler, storage tank and whirlpool, fully insulated, mounted on a frame or be with legs as to customers' requirement.

2. In our brewhosue and components, SUS304 stainless steel or above standard material are completely used.

3. Convenient cabinet control of all brewing process, automatic operation of pnematic valves.

4. Steam heating

All valves are operated directly on the control cabinet. In this case the piping is built, that the operation is comfortable for the operator.

The motor will be started by switches on the touch panel.

The temperature control is done by a automatic temperature controller with timing control.

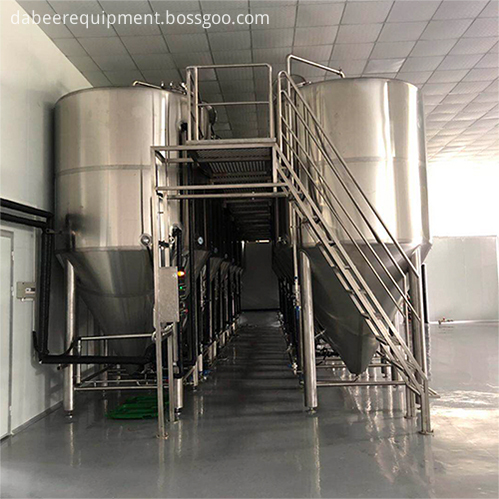

Fermentation tank

• double walled, completely insulated
• upright construction, test pressure 3 bar
• upper bottom as dished head
• lower bottom as conical bottom with opening angle 60°

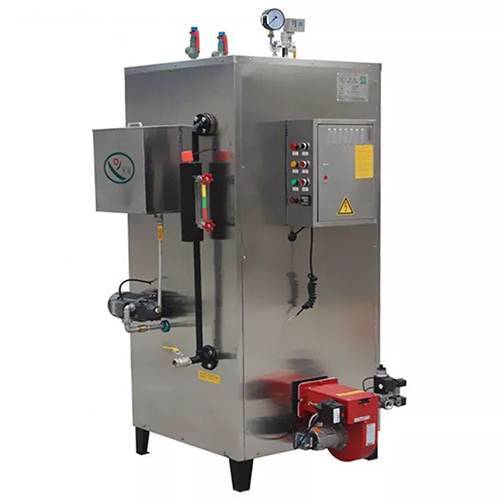

Steam generator

• Steam capacity: 500 kg / h steam
• Heating: electricity
• working pressure: 8-10 bar
• equipped with:
• with gas pressure regulating valve
• with adjusting container made of stainless steel
• with fine filter
• with water meter
• with all security fittings
• with complete internal piping
• with electronic control

Cooling Plant -- Cold Water Tank, Glycol Tank

in compact design:

for internal installation

made as one-circle system

refrigerant: R134a

glycol wage: 20%
