5HL Stainless Steel 2 Vessel Mini Brewery Brewhouse

Basic Info

Model No.: DHB-500-2

Processing Material: Natural Ingredients

Process: Ferment

Additional Info

Packaging: wooden case or fix in container

Productivity: 100 set

Brand: deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 10 set per month

Certificate: CE

HS Code: 8343400000

Port: Dongguan,Shenzhen,Hongkong

Product Description

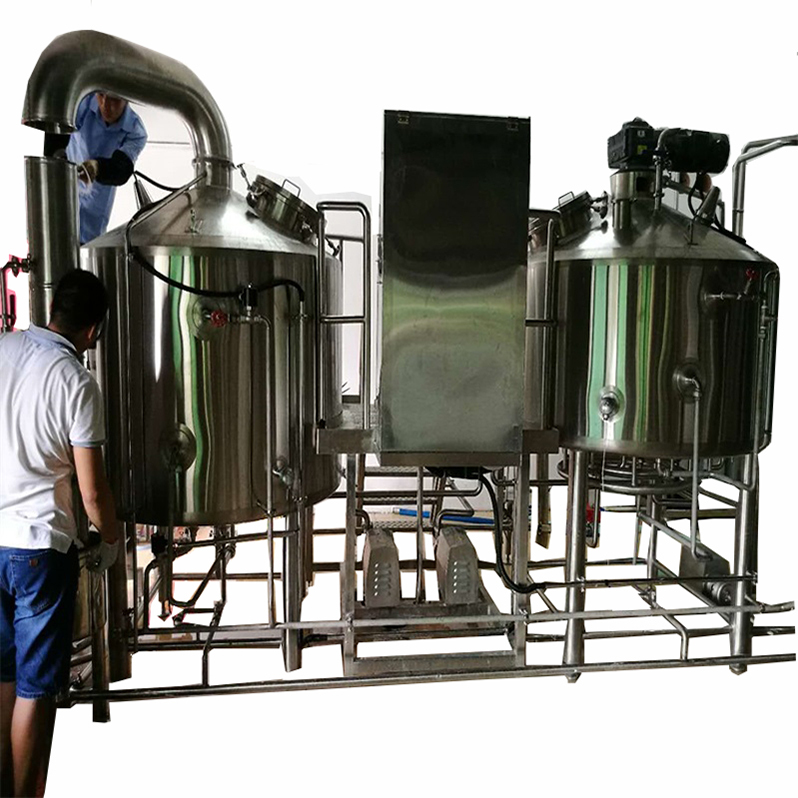

5HL 2 vessel mini brewhouse ( American Type )

The specification of this brewhosue includes, but not limited to

1. Designed as two vessels: Mash - Lauter tun and Brew Boiler - Whirlpool, fully insulated, mounted on a frame or be with legs as to customers' requirement.

2. In our brewhosue and components, SUS304 stainless steel or above standard material are completely used.

3. Convenient cabinet control of all brewing process, manual operation of valves.

4. Steam heating

All valves are operated directly on the valves. In this case the piping is built, that the operation is comfortable for the operator.

The motor will be started by switches on the control panel.

The temperature control is done by a simple temperature controller without timing control.

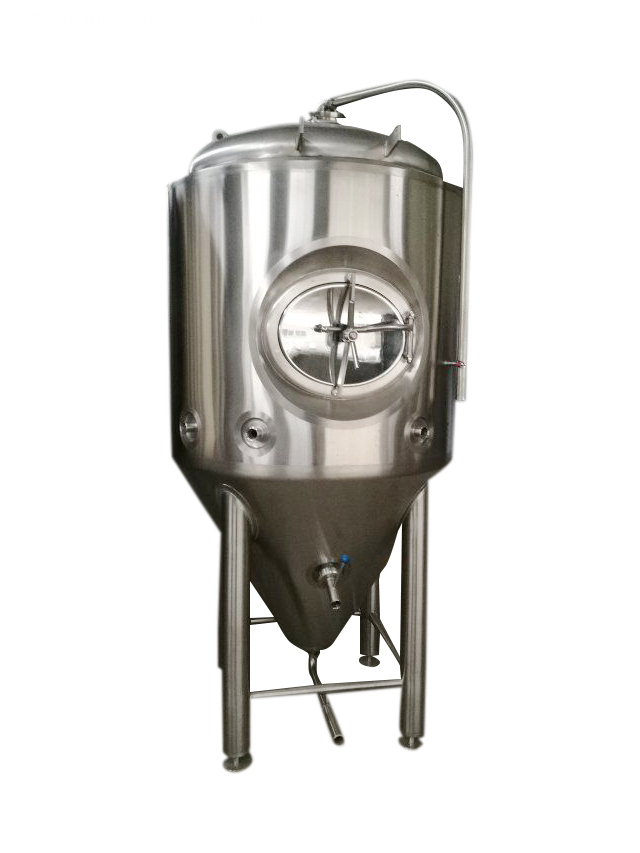

5HL Fermentation tank

• double walled, completely insulated
• upright construction, test pressure 3 bar
• upper bottom as dished head
• lower bottom as conical bottom with opening angle 60°

equipped with:

• upper bottom
• 1 connection piece DN 25/25
• for RLV fitting with CIP connection piece DN 25
• 2 crane eyes
• 1 manhole 350 x 450 mm
• 2 connections for cooling, welding nipple R ½[
• 1 thermometer
• 1 connection piece R ½[
• 1 outlet DN 32
• 3 feet made of stainless steel with pressure plates
• 1 sampling tap
• Surface: inner welds polished inside,
• Outer welds polished and stained
