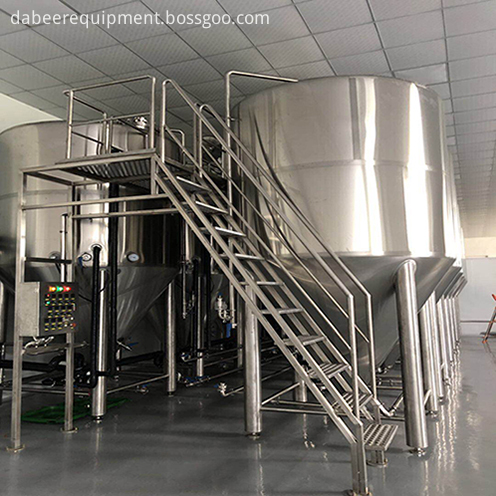

Brewery Cylindrically Conical Beer Fermentation Tank CCT

Basic Info

Model No.: DHB-FT

Processing Material: Natural Ingredients

Process: Ferment

Material: Stainless Steel 304 Or 316L

Size: 3HL To 100HL

Appearance: Conical Fermenter With Bottom Opening Angle 60 Degree

Function: Beer Fermenting And Maturing

Construction: Two Sheet Walls With Cooling Jacket And Insulation

Cooling System: Jacket Cooling, With Glycol Inlet And Outlet

Manway Type: Side Manway Or Top Manway

Pressure: Tested 0.99 Bar, With Security Valve

CIP System: Equipped CIP Pipe And Spray Heads On Top

Drainage: Bottom Of The Tanks, Connector Size As To Capacity

Additional Info

Packaging: Standard export packing

Productivity: 100 set / month

Brand: Deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20 set per month

Certificate: CE

HS Code: 8438400000

Port: Shenzhen Port,Dongguan Port,Hong Kong Port

Product Description

Brewery Cylindrically Conical Beer Fermentation Tank CCT

The production of beer usually use stainless steel CCT, which is a cylindrical tank with a conical bottom. It is used for primary fermentation or entire fermentation process. Our brewery beer fermentation tanks take sanitary as the most important aspect during fabrication. With beer tap, sample faucet, drainage, CIP system, thermometer, security valve, CO2 regulate valve, PT100 and all necessary fittings and connectors.

We manufacture fermentation tanks at size from 50L nano to 3hl, 5hl, 10hl, 20hl taproom tanks to 30hl, 50hl, 150hl commercial brewery tanks, and we also undertake construction for you on an Original Equipment Manufacturer (O.E.M), or size as to your brewery spaces.

Details of the our product are featured within content below:

    for example 6000L fermentation tank

   equipped with:

• upper bottom
• 1 connection piece DN 25/25 DIN 11851
• for RLV fitting with CIP connection piece DN 25
• 2 crane eyes
• 1 manhole 350 x 450 mm
• 2 connections for cooling, welding nipple R ½[
• 1 thermometer
• 1 connection piece R ½[
• 1 outlet DN 32 DIN 11851
• 3 feet made of stainless steel with pressure plates

 Fermentation Tanks Control system:

1. Tanks Temperature automatic controlled by combined PLC system

2. Tanks controlled by individual temperature controller without cold water tank.

CIP for Fermentation tanks

1. Mobile CIP

two tanks 150L, acid tank and alkaline tank with heating elements

with pump

2. Automatic CIP system

 For scale brewery, we will design automatic cleanning system as to your detailed need.

All the valves are pneumatic valves, which are controlled by computer.

With a series of recycle and cleaning liquid storage tanks as to number of fermentation tanks

Pumps

Cooling plant – Glycol for wort and vessel cooling

in compact design:

for internal installation

made as one-circle system

refrigerant: R134a

glycol wage: 20%

Complete flowchart for example:
